INDUSTRIAL SAFETY SHOWER Stainless steel Wall mounted emergency eyewash station

Specifications

1.Product name: Wall stainless steel type eyewash equipment
2.Brand: WINBAY
3.Product model: WBG11
4.Production standard: American ANSIZ358.1-2014
5.Function: eye wash
6.Nominal pressure: 1.0mpa
7.Work pressure: 0.2-0.4 Mpa
8.Eye wash flow rate: greater than 11.4 L/min
9.Inlet size: 1/2 height 850mm
10.Outlet size: 1-1/4 height 98mm
11.Gross weight: 3.5KG
12.Net weight: 3KG
13.Packing Size: L * W * H = 750 * 300 * 250mm for 2sets
14.Product size: L * W * H = 360 * 330 * 350mm
15.Use medium: water meets the standard of health standard
16.Main material: special SS304 stainless steel, which conforms to national standard, has good corrosion resistance of acid, alkali, salt and oil

17.The way to wash eyes switch: manual.When used, it is only needed to push the valve gently. The clean water comes out automatically from the nozzle, and the spray head is equipped with dust cover. When used, it can be automatically washed away with the flow of water.After the shut-eye switch is opened, the non-man will operate and will not shut automatically. Please turn off the switch and reset the dust cover when used.

17.Eye nozzle: eye nozzle built-in multi-layer filter, effectively filter the impurities in water, the water flow into a foamy water, effectively prevent the impurities in water, or to the injured eye due to water flow ultra secondary damage nerve and the injured area.
The filter screen is easy to remove, easy to clean and easy to maintain.

18.When this product is suitable for the environmental temperature is higher than 0 ℃, should pay attention to below 0 degrees and environment freeze protection of pipes

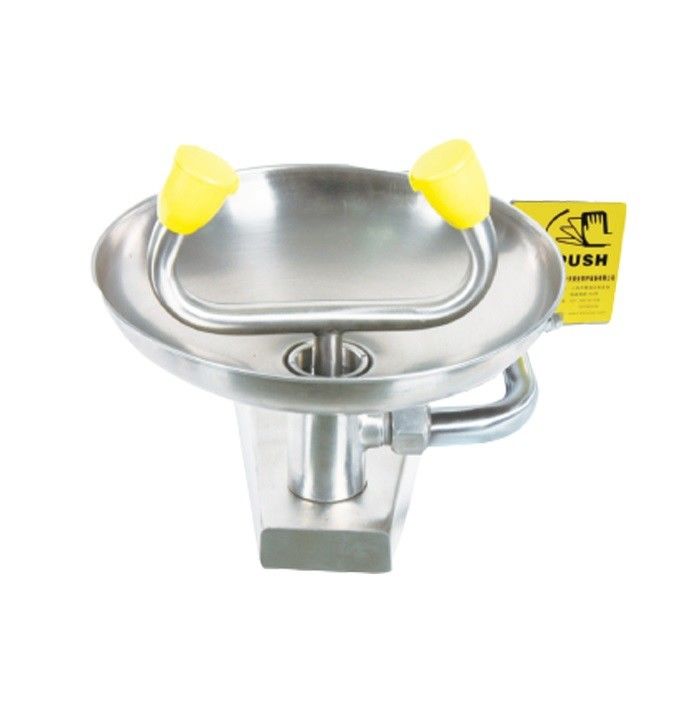

Product pictures :
