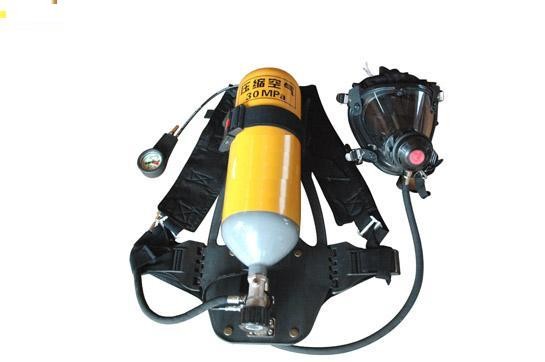

Self-contained breathing apparatus
SCBA Main Performance:
1)Material of Cylinder: Steel
2)Volume of Cylinder: 6L
3) Air Strorage capacity: 1800L
4)Alarm pressure:50-60Bar
5)Normal working pressure:300Bar
6)Duration time,it can work for 60Min
7)Weight is less than 17kg

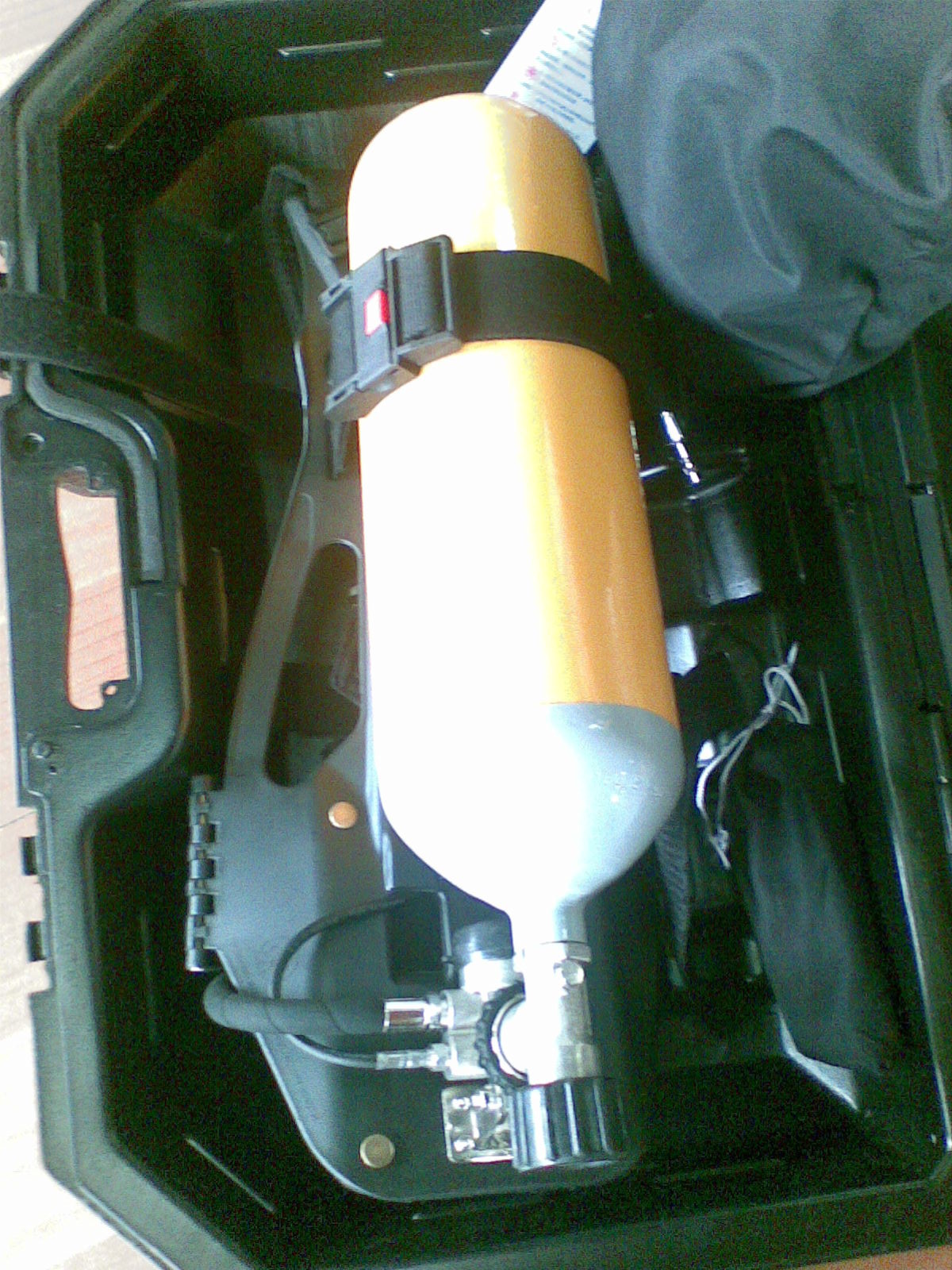

8)730x300x450mm 1 pcs/customized plastic box

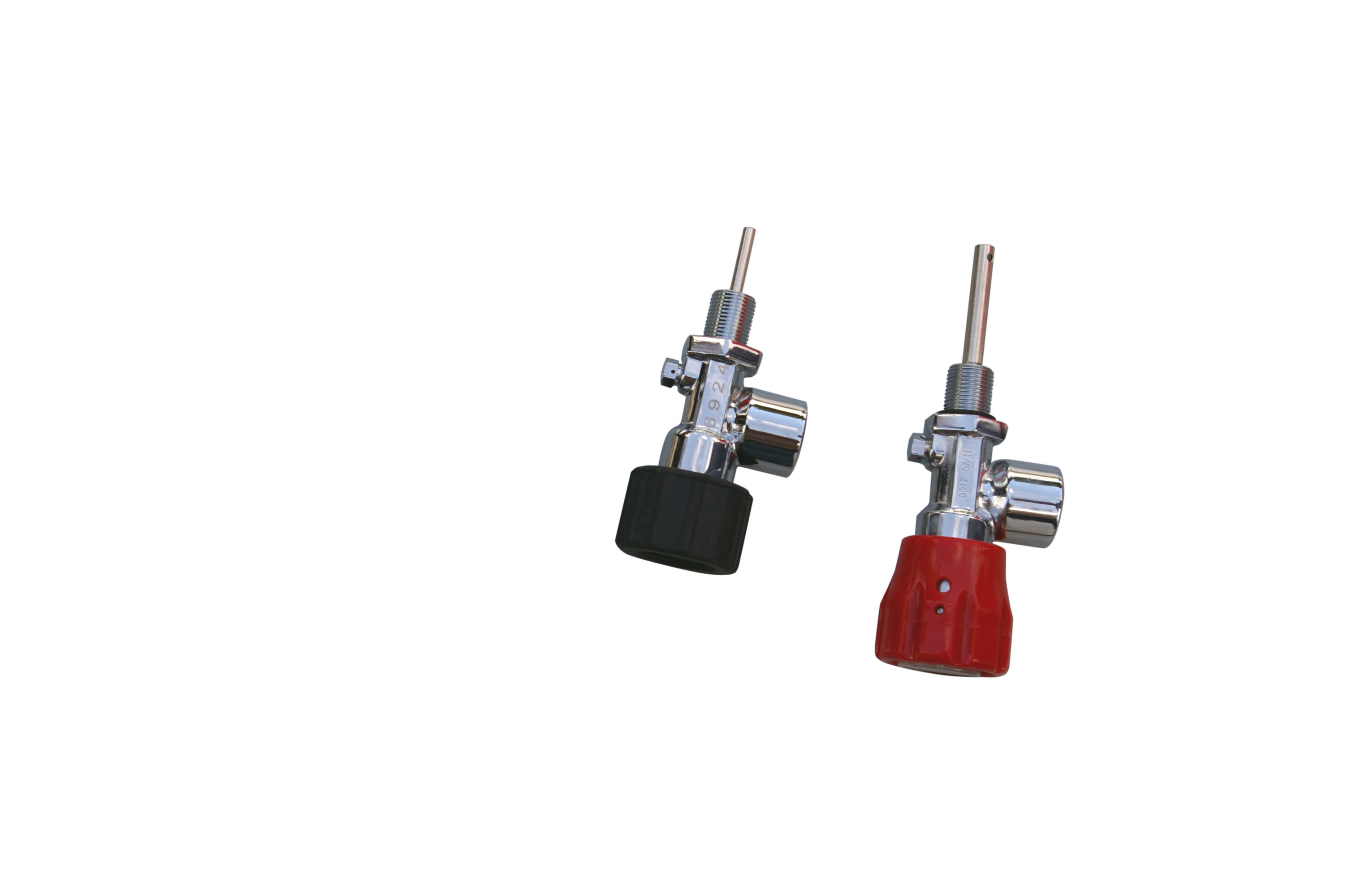

9)One complete set included Cylinder,Mask, Back Care,Valve,Pressure Gage and Alarm Whistle& Pressure Regulator.

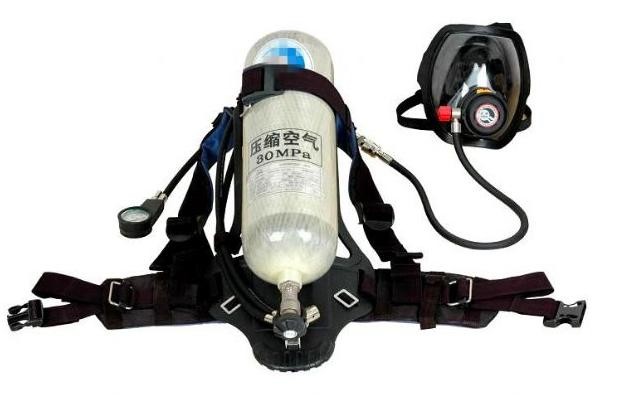

We also have other types of BA Sets,Carbon fibre Material Cylinder have 6.8/9.0/12.0L.
2.Product parameters:
| gas mask | Visual field | ≥96% |
| Material | silica gel | |
| service life | 5 years | |
| Exhalation resistance | ≤ 98 pa | |
| Inhalation resistance | ≤ 196 pa at 30L/min | |
| Colors for option | black | |
| Oil mist penetration coefficient | ≤0.005% at 30L/min | |
| Anti-Cyanogen chloride time | ≥30 minutes, at 30L/min | |
| cylinder | Material | carbon fiber or steel |
| Cylinder volume | 6.8L or 9L for option | |
| Cylinder Capacity | 2040L(6.8L) | |
| Exhalation resistance | ≤1000pa | |
| Inhalation resistance | ≤500pa | |
| Operating temperature | -30°c--60°c | |
| Alarm pressure | 5.5±0.5Mpa | |
| Working pressure | 300bar | |
| service time | 60min(6.8L) | |
| Alarm sound | ≥90db | |
| back plate | Material | Nomex & fire resistant cotton |
| demand valve | air flow | ≥500L/min |
| standard | GA124-2004 | CCC |
| Gross weight | 6.8L | 14kg |
Model | Ctlinder Volume | Working Pressure | Air Volume | Alert Pressure | Service Time | Weight | Packing Size |
RHZK5L | 5L | 30Mpa | 1500L | 5-6Mpa | 50min | 14kg | 77*30*49cm |
RHZK6L | 6L | 30Mpa | 1800L | 5-6Mpa | 60min | 15kg | 77*30*49cm |
RHZK6.8L | 6.8L | 30Mpa | 2040L | 5-6Mpa | 60min | 10.5kg | 77*30*49cm |
RHZK6.8L*2 | 6.8L*2 | 30Mpa | 4080L | 5-6Mpa | 120min | 17kg | 77*30*49cm |
RHZK9L | 9L | 30Mpa | 2700L | 5-6Mpa | 90min | 11.5kg | 77*30*49cm |
|
|
