| Brand Name : | WINBAY |
| Model Number : | WBG33 |
| Certification : | CE, OHSAS, ANSI,WATER MARK, ISO |
| Price : | $160-230/set |
| Payment Terms : | L/C, T/T, Western Union, paypal |

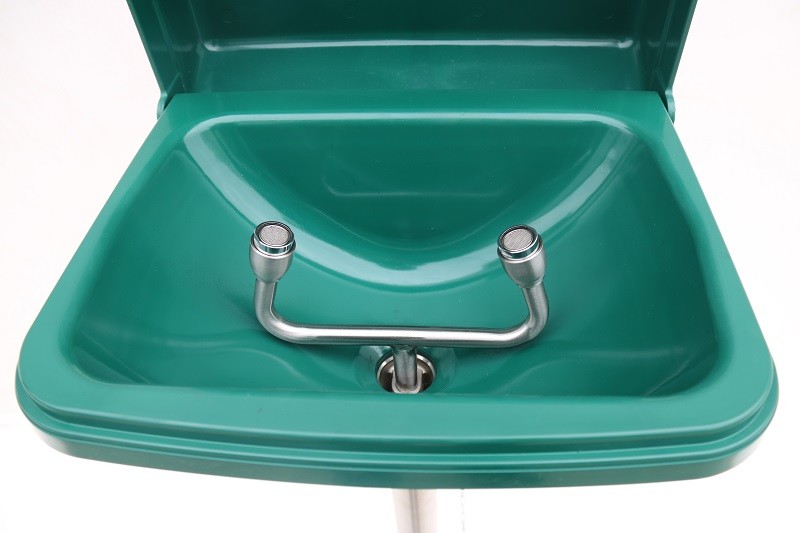

Round bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and close
Specification:
Open the eyewash basin cover, the eyewash spray automatically open .
Close the eyewash basin cover, the eyewash spray automatically close.
1.Product name: Wall mounted type stainless steel eyewasher with
cover
2.Brand: WINBAY
3.Model: WBG33
4.Production standard: American ANSIZ358.1-2014.
5.Function: eye wash
6.Nominal pressure: 1.0mpa.
7.Work pressure: 0.2-0.4mpa.
8.The total height of the eye-washing machine: depending on the
situation of the site (according to the us ANSIZ358.1-2014, the
head of the washing nozzle should be within 838mm-1143mm from the
height of the ground).
9.Eye flow: > 12L/min.
10.The inlet size: npt1/2
11.Outlet size: npt1-1/4,
12.Gross weight: 5KG
13.Net weight: 4.5 KG
14.Packing Size: L * W * H = 380 * 380 * 220mm.
15.Product size: L * W * H = 305 * 405 * 300mm.
16.Use medium:water meets the health standard
17.Main material: special SS304 stainless steel, which conforms to
national standard, has good corrosion resistance of acid, alkali,
salt and oil
18.EyeWash cover basin: use a 1MM thick stainless steel washbasin
and basin cover with a diameter of 12 inches, effectively ensuring
that the waste water is not overflowing for 15 minutes
continuously.
| product | Wall mounted type stainless steel eyewasher with cover |
| medium | water meets the health standard |
| Applicable places | widely used in nuclear power, power station, pharmaceutical,
medical, chemical, petroleum, ship, electronic, smelting, printing
and dyeing, education and scientific researc |
|
|
